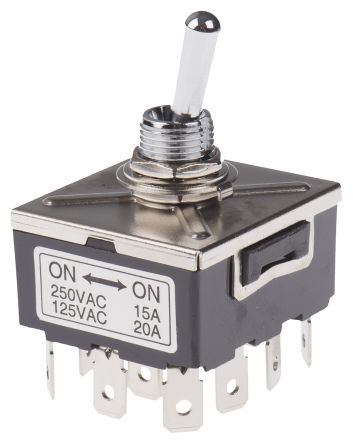

SpecificationsContact Configuration = Four Pole Double Throw (4PDT)Switch Operation = On-OnContact Current Rating = 20 A @ 28 V dcMounting Type = Panel MountTerminal Type = TabActuator Length = 17mmVoltage Rating = 28V dcContact Resistance = 20mΩ

RS series of panel mount toggle switches with a low contact resistance. The RS series toggle switches have a minimum insulation resistance of 2000MΩ at 500Vdc and a minimum dielectric strength of 500Vrms at sea level.

RS series of panel mount toggle switches with a low contact resistance. The RS series toggle switches have a minimum insulation resistance of 2000MΩ at 500Vdc and a minimum dielectric strength of 500Vrms at sea level.

SpecificationsCurrent Rating = 200mAFuse Size = 5 x 20mmFuse Speed = FVoltage Rating = 250V ACOverall Dimensions = 5 x 20mmBody Material = GlassFuse Standard = IEC 127-2/II

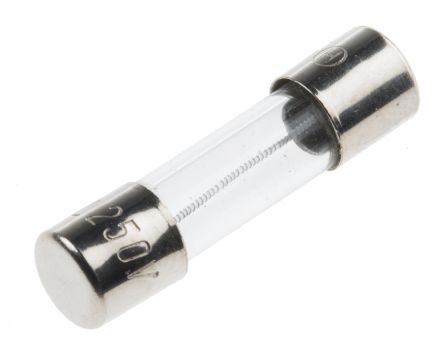

SpecificationsCurrent Rating = 1.5AFuse Size = 5 x 20mmFuse Speed = TVoltage Rating = 250V acOverall Length = 20mmDiameter = 5mmOverall Dimensions = 5 x 20mmBody Material = GlassSeries = GTE

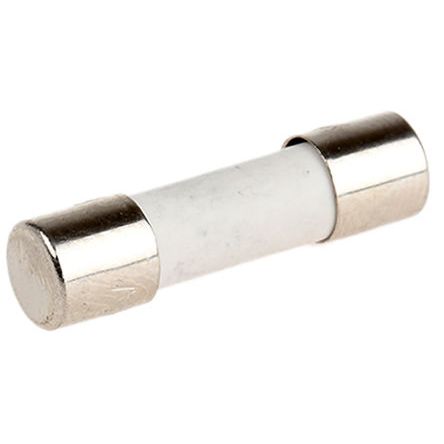

SpecificationsCurrent Rating = 10AFuse Size = 5 x 20mmFuse Speed = FVoltage Rating = 250V acOverall Length = 20mmDiameter = 5mmOverall Dimensions = 5 x 20mmBody Material = Ceramic

SpecificationsCurrent Rating = 100mAFuse Size = 5 x 20mmFuse Speed = TVoltage Rating = 250V acDiameter = 5mmOverall Dimensions = 5 x 20mmBody Material = Glass

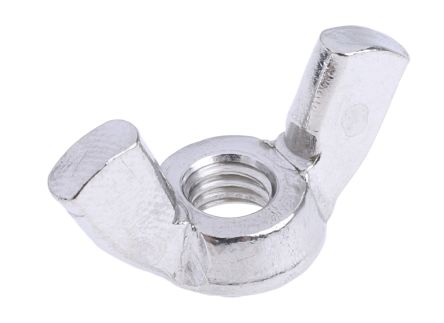

SpecificationsThread Size = M6Wing Length = 30mmMaterial = Stainless SteelStainless Steel Type = A2 304Finish = Plain

SpecificationsLAN Category = Cat5Terminated/Unterminated = TerminatedConnector A = PlugConnector A Gender = MaleConnector B = PlugConnector B Gender = MaleLength = 5mOuter Sheath Material = PVCSheath Colour = RedStandards Met = TIA/EIA 568

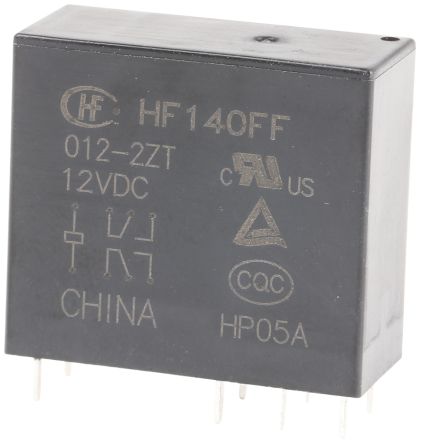

SpecificationsCoil Voltage = 12V DCContact Configuration = DPDTMounting Type = PCB MountSwitching Current = 10ALatching = NoTerminal Type = Through HoleCoil Resistance = 275ΩCoil Power = 530mWMaximum Switching Voltage AC = 250V ACMaximum Switching Voltage DC = 30V DCLength = 29mmHeight = 26.3mmMaximum Switching Power DC = 240 W

SpecificationsCoil Voltage = 24V DCContact Configuration = DPDTMounting Type = PCB MountMaximum Switching Current AC = 2 AMaximum Switching Current DC = 2 AMaximum Switching Voltage AC = 125VMaximum Switching Voltage DC = 60VMaximum Switching Power DC = 30 WLatching = NoDepth = 7.5mmHeight = 10mmDimensions = 12.5 x 10 x 7.5mmTerminal Type = PCB PinNumber of Poles = 1Coil Power = 50mW

SpecificationsSet Type = Threading Tap SetNumber of Pieces = 14Material = HSS

T-handles slide both ways for tighteningHardened & tempered split collet chucks for positive gripKnurled & hardened clamping nutSpring tension holds handle in desired positionIdeal for use in small spaces or where reach is required

UNF Taps

SpecificationsSet Type = Threading Tap SetType = Hand tap and drill setNumber of Pieces = 29Material = High Speed Steel

4 pair 26awg (0.94mm Ø) 7/34 stranded bare copper conductor with polyolefin insulationBinder: wrapped with polyester tape, 100% coverage Tape screen: aluminised polyester tapeBraid screen: 0.1mm tinned copper, 65% minimum coverageJacket: RAL7037 grey flame retardant PVC

SpecificationsThread Size = M8Length = 12mmHead Shape = Hex Socket ShoulderMaterial = SteelThread Type = MetricThread Pitch = 1.5mmShoulder Diameter = 10mm

Glass Cartridge FuseA glass cartridge fuse is a type of electrical safety device used to protect circuits and equipment from overcurrent situations.They offer a wide variety of type to choose from.[Feature]● Rated Current Minimum/Maximum : 200 mA to 15A● Operating Temperature (°C): -55 to 125● Fuse sizes (Diameter X Length): 5x20 mm. and 6.3 x 32 mm.[Application]They are commonly used in industrial equipment, machinery, control panels and so on

Glass Cartridge FuseA glass cartridge fuse is a type of electrical safety device used to protect circuits and equipment from overcurrent situations.They offer a wide variety of type to choose from.[Feature]● Rated Current Minimum/Maximum : 200 mA to 15A● Operating Temperature (°C): -55 to 125● Fuse sizes (Diameter X Length): 5x20 mm. and 6.3 x 32 mm.[Application]They are commonly used in industrial equipment, machinery, control panels and so on

Glass Cartridge FuseA glass cartridge fuse is a type of electrical safety device used to protect circuits and equipment from overcurrent situations.They offer a wide variety of type to choose from.[Feature]● Rated Current Minimum/Maximum : 200 mA to 15A● Operating Temperature (°C): -55 to 125● Fuse sizes (Diameter X Length): 5x20 mm. and 6.3 x 32 mm.[Application]They are commonly used in industrial equipment, machinery, control panels and so on
