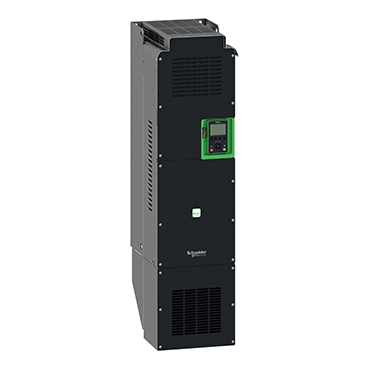

ATV650D45N4 · SCHNEIDER
ระบบขับเคลื่อนความเร็วตัวแปร Altivar เครื่องจักร ATV600
รวม VAT แล้ว
฿211,200.00
฿188,236.08
✓ พร้อมส่ง
20 ชิ้น
🚚 ระยะเวลาจัดส่ง
สอบถามกำหนดส่ง
ราคาพิเศษตามจำนวน
จำนวนชิ้น (Qty.)
ราคา (Unit Price THB.)
1 ขึ้นไป
฿211,200.00
฿188,236.08
สินค้าของแท้ 100%
ออกใบกำกับภาษีได้
จัดส่งทั่วประเทศ
ยิ่งสั่งมาก ยิ่งคุ้ม
Product Specification
| Variant | Modbus TCP, Ethernet |
|---|---|
| EMC Filter | Integrated with 50 m conforming to IEC 61800-3 category C2<br>Integrated with 150 m conforming to IEC 61800-3 category C3 |
| Option Card | Slot A: communication module, Profibus DP V1 / Slot A: communication module, CANopen SUB-D 9 / Slot A: communication module, CANopen daisy chain RJ45 / Slot A/slot B: digital and analog I/O extension module / Slot A/slot B: output relay extension module / Slot A: communication module, CANopen screw terminals / Slot A: communication module, DeviceNet / Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink / Slot A: communication module, Modbus TCP/ EtherNet/IP / Slot A: communication module, PROFINET |
| Line Current | 48.3 A at 480 V (heavy duty) / 54.8 A at 380 V (heavy duty) / 57.3 A at 480 V (normal duty) / 79.8 A at 380 V (normal duty) |
| Apparent Power | 40.2 kVA at 480 V (heavy duty) / 57.4 kVA at 480 V (normal duty) |
| Motor Power HP | 40 Hp heavy duty / 60 Hp normal duty |
| Safety Function | STO (safe torque off) SIL 3 |
| Type of Cooling | Forced convection |
| Range of Product | Altivar Process ATV600 |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Device Short Name | ATV650 |
| Product Destination | With disconnect switch |
| Switching Frequency | 4...12 kHz with derating factor, 2...12 kHz adjustable |
| Discrete Input Logic | 16 preset speeds |
| Prospective Line Isc | 50 |
| IP Degree of Protection | IP55 conforming to IEC 60529 / IP55 conforming to IEC 61800-5-1 |
| Applicable motor capacity | 37.0 KW (heavy duty)<br>45.0 kW (normal duty) |
| Continuous Output Current | 59 A at 4 kHz for heavy duty / 87 A at 4 kHz for normal duty |
| Product or Component Type | Variable speed drive |
| [Us] Rated Supply Voltage | 380...480 V |
| Communication Port Protocol | Asynchronous motors<br>Synchronous motors |
| Nominal Switching Frequency | 4 |
| Product Specific Application | Process and utilities |
| Speed Drive Output Frequency | 0.1…500 Hz |
| Synchronous Motor Control Profile | Synchronous reluctance motor, Permanent magnet motor |
| Asynchronous Motor Control Profile | Optimized torque mode, Constant torque standard, Optimized torque mode |
