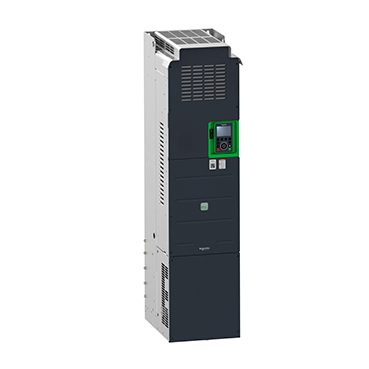

ATV930C20N4F · SCHNEIDER
ระบบขับเคลื่อนความเร็วตัวแปร Altivar เครื่องจักร ATV900
รวม VAT แล้ว
฿1,620,600.00
฿1,444,391.09
✓ พร้อมส่ง
20 ชิ้น
🚚 จัดส่งภายใน
82 วัน
ราคาพิเศษตามจำนวน
จำนวนชิ้น (Qty.)
ราคา (Unit Price THB.)
1 ขึ้นไป
฿1,620,600.00
฿1,444,391.09
สินค้าของแท้ 100%
ออกใบกำกับภาษีได้
จัดส่งทั่วประเทศ
ยิ่งสั่งมาก ยิ่งคุ้ม
Product Specification
| Variant | Modbus TCP, EtherNet/IP, Modbus serial |
|---|---|
| EMC Filter | Integrated<br>With EMC plate option |
| Option Card | Slot A: communication module for Profibus DP V1 / Slot B: 5/12 V digital encoder interface module / Slot A: communication module for CANopen SUB-D 9 / Slot A: communication module for CANopen daisy chain RJ45 / Slot A/slot B/slot C: digital and analog I/O extension module / Slot A/slot B/slot C: output relay extension module / Slot A: communication module for CANopen screw terminals / Slot A: communication module for DeviceNet / Slot A: communication module for EtherCAT / Slot A: communication module for PROFINET / Slot B: analog encoder interface module / Slot B: resolver encoder interface module Communication module for Ethernet Powerlink |
| Line Current | 262.0 A at 440 V (heavy duty) / 302.0 A at 380 V (heavy duty) / 319.0 A at 440 V (normal duty) / 369.0 A at 380 V (normal duty) |
| Mounting Mode | Floor-standing |
| Apparent Power | 198 kVA at 400 V (heavy duty) / 242 kVA at 400 V (normal duty) |
| Range of Product | Altivar Process ATV900 |
| Network Frequency | 50...60 Hz |
| Device Application | Industrial application |
| Product Destination | Standard version, Without braking chopper |
| Switching Frequency | 2.5...8 kHz with derating factor, 2...8 kHz adjustable |
| Discrete Input Logic | 16 preset speeds |
| Prospective Line Isc | 50 |
| IP Degree of Protection | IP21 |
| Maximum Output Frequency | 599 Hz |
| Network Number of Phases | 3 phases |
| Applicable motor capacity | 200.0 KW for normal duty<br>160.0 kW for heavy duty |
| Continuous Output Current | 302 A at 2.5 kHz for heavy duty / 370 A at 2.5 kHz for normal duty |
| Product or Component Type | Variable speed drive |
| [Us] Rated Supply Voltage | 380...440 V - 15...10 % |
| Communication Port Protocol | Asynchronous motors<br>Synchronous motors |
| Nominal Switching Frequency | 2.5 |
| Product Specific Application | Process for industrial |
| Synchronous Motor Control Profile | Permanent magnet motor, Synchronous reluctance motor |
| Asynchronous Motor Control Profile | Optimized torque mode, Variable torque standard, Constant torque standard |
