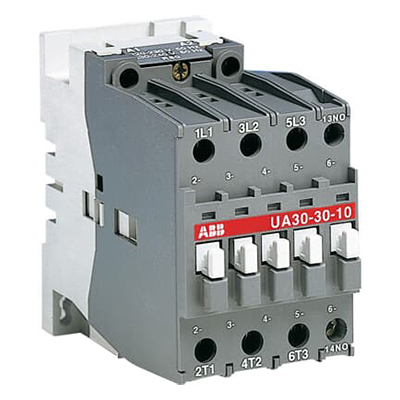

UA30-30-10 220-230V 50HZ / 230-240V 60HZ · ABB
คอนแทคเตอร์ ABB สำหรับการสลับ ตัวเก็บประจุ ซีรีส์ UA 3 ขั้ว
รวม VAT แล้ว
฿3,494.59
✓ พร้อมส่ง
20 ชิ้น
🚚 จัดส่งภายใน
47 วัน
ราคาพิเศษตามจำนวน
จำนวนชิ้น (Qty.)
ราคา (Unit Price THB.)
1 ขึ้นไป
฿3,494.59
สินค้าของแท้ 100%
ออกใบกำกับภาษีได้
จัดส่งทั่วประเทศ
ยิ่งสั่งมาก ยิ่งคุ้ม
Product Specification
| Width | 54 |
|---|---|
| Height | 90 |
| Weight | 0.71 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Depth/Length | 108.3 |
| Operate Time | Between Coil De-energization and NO Contact Opening 4 to 11 ms / Between Coil Energization and NO Contact Closing 8 to 21 ms |
| Terminal Type | Screw Terminals |
| Number of Poles | 3 |
| Coil Consumption | Average Holding Value 50 / 60 Hz 12 V·A / Average Pull-in Value 50 Hz 120 V·A / Average Pull-in Value 60 Hz 120 V·A / Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A / Holding at Max. Rated Control Circuit Voltage 50 Hz 3 W / Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A / Holding at Max. Rated Control Circuit Voltage 60 Hz 3 W / Pull-in at Max. Rated Control Circuit Voltage 50 Hz 120 V·A / Pull-in at Max. Rated Control Circuit Voltage 60 Hz 140 V·A |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60<br>Control Circuit 50 / 60<br>Main Circuit 50 / 60 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20$acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20$acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715<br>TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mechanical Durability | 10 million |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A<br>cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 340 A |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 3 |
| Connecting Terminals Main Poles | M5 (+,-) pozidriv 2 screws with 2x (5.6x6.5 mm) connector |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Connecting Capacity Main Circuit | Flexible with Cable End 2.5 to 10 mm² / Rigid Cable 2.5 to 16 mm² |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A<br>gG Type Fuses 1.5 to 1.8 A |
| Mounting by Screws (not supplied) | 2 x M4 screws placed diagonally |
| Connecting Capacity Auxiliary Circuit | Flexible with Cable End 0.75 to 2.5 mm² / Rigid Cable 1 to 4 mm² |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-4-1 1000 V<br>acc. to IEC 60947-5-1 690 V<br>acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 220 to 230 V<br>60 Hz 230 to 240 V |
| Rated Operational Power AC-6b (P<sub>e</sub>) | (230 / 240 V) 40 °C, 50 / 60 Hz 16 kvar , (230 / 240 V) 55 °C, 50 / 60 Hz 16 kvar , (230 / 240 V) 70 °C, 50 / 60 Hz 11 kvar , (400 / 415 V) 40 °C, 50 / 60 Hz 27.5 kvar , (400 / 415 V) 70 °C, 50 / 60 Hz 19 kvar , (400 / 415 V) 55 °C, 50 / 60 Hz 27.5 kvar , (440 V) 40 °C, 50 / 60 Hz 30 kvar , (440 V) 55 °C, 50 / 60 Hz 30 kvar , (440 V) 70 °C, 50 / 60 Hz 20 kvar , (500 / 550 V), 40 °C, 50 / 60 Hz 34 kvar , (500 / 550 V) 55 °C, 50 / 60 Hz 34 kvar , (500 / 550 V) 70 °C, 50 / 60 Hz 23.5 kvar , (690 V) 40 °C, 50 / 60 Hz 45 kvar , (690 V) 55 °C, 50 / 60 Hz 45 kvar , (690 V) 70 °C, 50 / 60 Hz 32 kvar , |
| Rated Operational Current AC-13 (I<sub>e</sub>) | (24 V) 6 A / 144 W , (48 V) 2.8 A / 134 W , (72 V) 2 / 144 W , (110 V) 1.1 A / 121 W , (125 V) 1.1 / 138 W , (220 V) 0.55 A / 121 W , (250 V) 0.55 / 138 W |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A / (690 V) 2 A / (24 / 127 V) 6 A / (220 / 240 V) 4 A / (380 / 400 V) 3 A |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 140 A / for 1 s 100 A |
Product Information
- ROHS: 9
